Renoir Downstream Toolkit: A Complete Showcase

This notebook is a comprehensive reference for every downstream analysis tool that Renoir offers, demonstrated end-to-end on a precomputed neighborhood-score matrix. If you’ve already produced a neighborhood_scores object from Renoir.compute_neighborhood_scores (see the Visium and CosMx tutorials), this notebook walks through everything you can do with it.

Scope. We assume neighborhood_scores (and the supporting tables for ligand ranking) have already been computed and saved to disk. We load, not compute, so the focus stays on the downstream tools themselves.

Overview

#	Tool	What it does
1	sc.pl.spatial (single pair)	Spatial map of one ligand–target pair
2	Renoir.create_cluster (pathway mode)	Group L–T pairs by curated MSigDB pathways
3	Renoir.create_cluster (de novo mode)	Group L–T pairs by data-driven clustering
4	Renoir.downstream_analysis	Leiden communication domains + pathway PC AnnData
5	Spatial domain map	Visualize communication domains in tissue
6	sc.tl.rank_genes_groups + heatmap	DE ligand–target pairs per domain
7	Pathway activity in space	Visualize one pathway’s spatial activity
8	Renoir.pcs_v_neighbscore	Pathway-vs-pair contribution heatmaps + spatial plots
9	Renoir.ligand_ranking	Rank ligands driving a chosen domain
10	Renoir.downstream.sankeyPlot	Sankey of ligand → target → cell type → domain flow

Dataset

We use the Triple-Negative Breast Cancer Visium dataset from Wu et al., Nature Genetics 2021 — the same data as the Visium tutorial — but with neighborhood_scores already computed and pickled on disk.

Update the file paths in section 0 to point at your own data before running.

0. Setup: imports and data loading

import Renoir
from Renoir import downstream as rd  # exposes sankeyPlot, pcs_v_neighbscore, etc.

import scanpy as sc
import pandas as pd
import numpy as np
import anndata
import pickle
import matplotlib.pyplot as plt

# Comfortable default size for Visium spatial plots
plt.rcParams['figure.figsize'] = [8, 8]

/home/nr57/.conda/envs/genomics/lib/python3.11/site-packages/dask/dataframe/__init__.py:31: FutureWarning: The legacy Dask DataFrame implementation is deprecated and will be removed in a future version. Set the configuration option `dataframe.query-planning` to `True` or None to enable the new Dask Dataframe implementation and silence this warning.
  warnings.warn(

Load the precomputed neighborhood scores

# Path to the saved neighborhood scores AnnData
NBSCORES_PATH = '/path/to/neighborhood_scores.h5ad'

neighborhood_scores = sc.read_h5ad(NBSCORES_PATH)
neighborhood_scores

AnnData object with n_obs × n_vars = 1322 × 3491
    obs: 'in_tissue', 'array_row', 'array_col', 'classification'
    var: 'gene_ids'
    uns: 'spatial'
    obsm: 'spatial'

Load the supporting tables for ligand ranking and Sankey

Some of the downstream tools (ligand_ranking, sankeyPlot) need extra inputs beyond the score matrix:

• ``celltype`` — AnnData with per-spot cell-type proportions (typically the cell2location output).

• ``SC`` — the matched scRNA-seq reference, used to measure receptor expression per cell type.

• ``ligand_receptor_pairs`` — curated L–R table (e.g., NATMI / OmniPath).

• ``ligand_target_regulatory_potential`` — a precomputed pickle of ligand → top-N target regulatory scores (NicheNet-style).

• ``celltype_colors`` — a custom palette so cell types render with consistent colors across all plots.

We also stash a copy of neighborhood_scores into .raw so functions that internally call rank_genes_groups can recover the unmodified scores afterward.

# --- File paths (edit to match your environment) ---
CELLTYPE_PATH       = '/path/to/celltype.h5ad'
SCRNA_PATH          = '/path/to/scRNA.h5ad'
LR_PAIRS_PATH       = '/path/to/NATMI_ligand_receptor_pairs.csv'
LT_REG_POTENTIAL    = '/path/to/top_500_target_opt_both_scores.pkl'
MSIG_PATH           = '/path/to/msig_human_WP_H_KEGG_new.csv'

# --- Load everything ---
celltype = sc.read_h5ad(CELLTYPE_PATH)
SC       = sc.read_h5ad(SCRNA_PATH)

ligand_receptor_pairs = pd.read_csv(LR_PAIRS_PATH)
ligand_target_regulatory_potential = pickle.load(open(LT_REG_POTENTIAL, 'rb'))

# Custom palette so cell-type colors stay consistent across plots
celltype_colors = {
    'Cancer Basal SC':      '#4a6e45',
    'Cancer Cycling':       '#8727a8',
    'T cells CD4+':         '#f19bf6',
    'CAFs myCAF-like':      '#919225',
    'T cells CD8+':         '#861c1c',
    'PVL Differentiated':   '#cc9900',
    'CAFs MSC iCAF-like':   '#0099ff',
    'Luminal Progenitors':  '#b12a55',
    'Mature Luminal':       '#906e1f',
    'Myoepithelial':        '#a48cf4',
    'Endothelial ACKR1':    '#f45cf2',
    'Macrophage':           '#f66bad',
    'Plasmablasts':         '#ffff00',
}

# Stash the score matrix so downstream functions can reach the raw values
neighborhood_scores.raw = neighborhood_scores.copy()

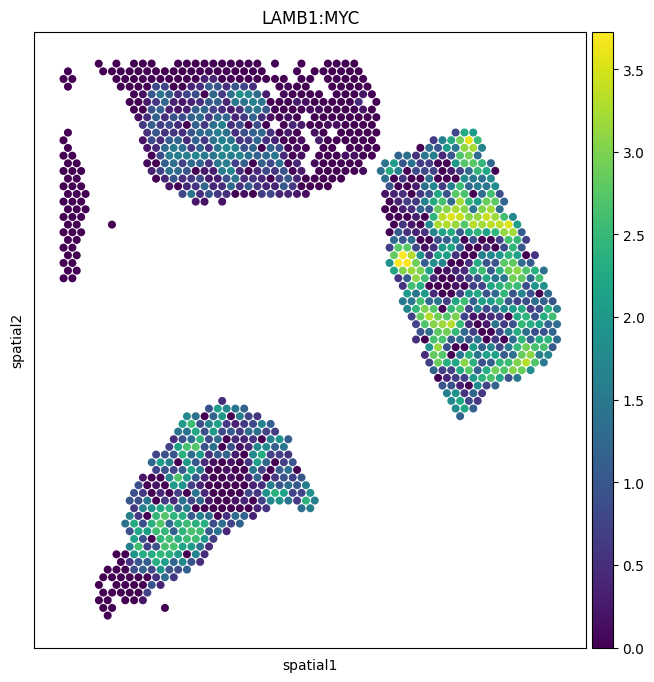

1. Spatial map of a single ligand–target pair

The simplest exploratory view: paint one pair’s score onto the tissue. Each spot is colored by the activity score for that pair, so bright regions are areas where the ligand from neighboring spots is predicted to be inducing the target gene in the focal spot.

We’ll use ``LAMB1:MYC`` — laminin-beta-1 driving MYC expression.

About the arguments

• img_key="hires" — overlay on the high-resolution tissue image stored in uns['spatial'].

• size=1.4 — scale up the spot dots so they actually fill the hex grid.

• alpha_img=0 — make the underlying H&E fully transparent. Set to 0.5 to see histology underneath.

sc.pl.spatial(
    neighborhood_scores,
    img_key="hires",
    color=["LAMB1:MYC"],
    size=1.4,
    alpha_img=0,
)

/tmp/ipykernel_2546534/1519112388.py:1: FutureWarning: Use `squidpy.pl.spatial_scatter` instead.
  sc.pl.spatial(

2. Renoir.create_cluster — Pathway-based ligand–target clusters

create_cluster groups ligand–target pairs into clusters so you can score whole biological programs at once.

This section shows the pathway-based mode: each gene set in MSigDB becomes a cluster of all L–T pairs whose target gene is in that set.

Key arguments

Argument	Meaning
neighbscore	The neighborhood-scores AnnData.
msig	Pathway DataFrame with columns ``gs_name`` (gene-set name) and ``gene_symbol`` (target gene).
method	Set to None to skip de novo clustering and only build pathway clusters.
pathway_thresh=4	Minimum pairs per pathway cluster (default 4).
restrict_to_KHW=True	Keep only KEGG / Hallmark / WikiPathways (filter on gs_name prefix).
use_pathway / pathway_path	Optionally subset MSigDB to a custom pathway list.

The function returns a dict mapping each pathway name to its list of ligand–target pairs.

Renoir.get_msig is a small loader that reads the MSigDB CSV and returns a DataFrame in the right shape. You can also supply your own dataframe directly.

# Load curated MSigDB pathways (Hallmark + KEGG + WikiPathways, human)
msigh = Renoir.get_msig('custom', path=MSIG_PATH)

# Build one ligand-target cluster per pathway
pathways = Renoir.create_cluster(
    neighborhood_scores,
    msigh,
    method=None,            # pathway-based only
    pathway_thresh=20,       # minimum pairs per pathway
    restrict_to_KHW=True,   # KEGG / HALLMARK / WP only
)

# Number of pathways retained, plus a peek at the names
print(f'Retained {len(pathways)} pathway clusters')
list(pathways.keys())[:10]

Retained 20 pathway clusters

['HALLMARK_ALLOGRAFT_REJECTION',
 'HALLMARK_EPITHELIAL_MESENCHYMAL_TRANSITION',
 'HALLMARK_INFLAMMATORY_RESPONSE',
 'HALLMARK_TNFA_SIGNALING_VIA_NFKB',
 'KEGG_CHEMOKINE_SIGNALING_PATHWAY',
 'KEGG_CYTOKINE_CYTOKINE_RECEPTOR_INTERACTION',
 'KEGG_FOCAL_ADHESION',
 'KEGG_PATHWAYS_IN_CANCER',
 'WP_ALLOGRAFT_REJECTION',
 'WP_BURN_WOUND_HEALING']

3. Renoir.create_cluster — De novo ligand–target clusters

Sometimes the pathways you care about aren’t in any curated database — particularly for tumor-specific or developmental programs. De novo clustering groups ligand–target pairs purely by similarity in their score profiles across spots, with no prior knowledge.

Renoir supports two de novo methods:

• method='dhc' — Divisive Hierarchical Clustering (default).

• method='hdbscan' — density-based; respect minpts to control minimum cluster size.

Key arguments

• method='dhc' or 'hdbscan' — pick the algorithm.

• minpts=3 — minimum cluster size for HDBSCAN.

• ltclust_thresh=6 — minimum pairs per de novo cluster (default 6, slightly higher than for pathways since these clusters are unsupervised and noisier).

If you also pass a pathway dataframe (msig), the function returns both the pathway clusters and the de novo clusters in the same dict, with de novo clusters keyed by names like cluster_0, cluster_1, ….

# De novo + pathway clusters in one go
all_clusters = Renoir.create_cluster(
    neighborhood_scores,
    msigh,
    method='dhc',           # de novo via divisive hierarchical clustering
    ltclust_thresh=30,       # minimum pairs per de novo cluster
    restrict_to_KHW=True,
)

# Separate de novo from pathway clusters by key prefix
de_novo  = {k: v for k, v in all_clusters.items() if k.startswith('cluster_')}

print(f'{len(pathways)} pathway clusters + {len(de_novo)} de novo clusters')
list(de_novo.keys())

/home/nr57/.conda/envs/genomics/lib/python3.11/site-packages/Renoir/downstream.py:102: ClusterWarning: The symmetric non-negative hollow observation matrix looks suspiciously like an uncondensed distance matrix
  link = linkage(dist, "average")

..cutHeight not given, setting it to 139.18467115835463  ===>  99% of the (truncated) height range in dendro.
..done.
20 pathway clusters + 24 de novo clusters

['cluster_24',
 'cluster_2',
 'cluster_3',
 'cluster_4',
 'cluster_1',
 'cluster_6',
 'cluster_5',
 'cluster_7',
 'cluster_12',
 'cluster_9',
 'cluster_19',
 'cluster_11',
 'cluster_8',
 'cluster_10',
 'cluster_22',
 'cluster_17',
 'cluster_15',
 'cluster_20',
 'cluster_21',
 'cluster_13',
 'cluster_14',
 'cluster_18',
 'cluster_16',
 'cluster_23']

4. Renoir.downstream_analysis — Communication domains + pathway PCs

This is the workhorse. A communication domain is a group of spots with similar L–T activity profiles — i.e., regions where the same signaling programs are active. Renoir derives them by reducing the score matrix to PCs (one PC space per pathway cluster), concatenating, and Leiden-clustering the result.

What it returns (with both flags on)

• neighbscore_copy — a copy of the AnnData with obs['leiden'] populated (one label per spot = its domain).

• pcs — an AnnData where .var is one row per pathway cluster, so pcs.X is the per-spot pathway activity matrix.

Key arguments

Argument	Meaning
ltpair_clusters	Dict from create_cluster (use pathways for curated only, all_clusters to include de novo).
resolution=0.6	Leiden resolution. Lower → fewer, broader domains; higher → more, finer ones.
n_markers=20	How many top marker pairs per cluster to retain.
n_top=20	How many highly expressed pairs to display per domain.
pdf_path=None	Set to a filepath to dump diagnostic plots to PDF.
return_cluster=True	Return the score AnnData with Leiden labels.
return_pcs=True	Return the pathway-PC AnnData.

Internally this calls scanpy’s rank_genes_groups. For more flexibility, run that step yourself (see section 6).

neighbscore_copy, pcs = Renoir.downstream_analysis(
    neighborhood_scores,
    ltpair_clusters=pathways | de_novo,   # use just pathway clusters here; pass all_clusters for both
    resolution=0.6,
    n_markers=20,
    n_top=20,
    pdf_path=None,
    return_cluster=True,
    return_pcs=True,
)

# Summary
n_domains = neighbscore_copy.obs['leiden'].nunique()
n_pathways = pcs.shape[1]
print(f'{n_domains} communication domains identified')
print(f'{n_pathways} pathway activity scores stored in `pcs`')

/home/nr57/.conda/envs/genomics/lib/python3.11/site-packages/scipy/sparse/_index.py:145: SparseEfficiencyWarning: Changing the sparsity structure of a csr_matrix is expensive. lil_matrix is more efficient.
  self._set_arrayXarray(i, j, x)

6 communication domains identified
44 pathway activity scores stored in `pcs`

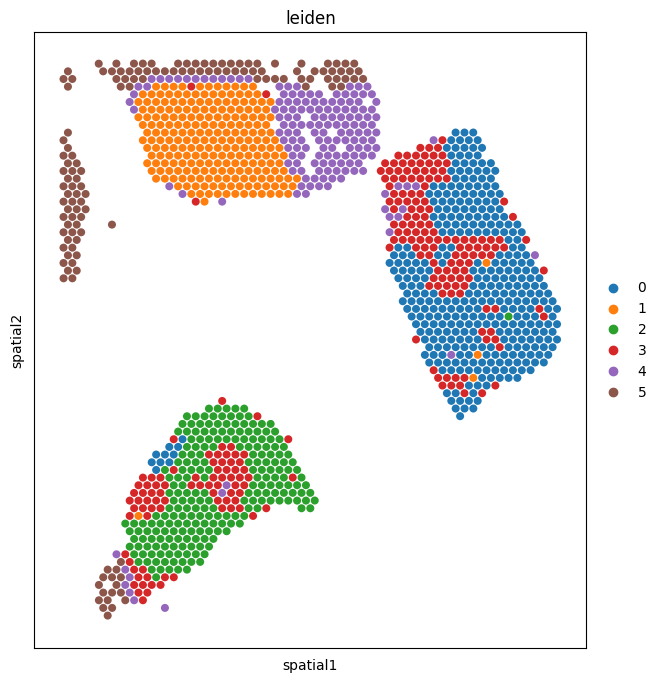

5. Visualize communication domains in space

Paint the Leiden domain labels back onto the tissue. Domains that form spatially contiguous regions — rather than scattering randomly — are the most biologically interesting, because they suggest the underlying signaling programs are organized into tissue niches (a tumor core, an immune-rich stromal band, a hypoxic edge, etc.).

sc.pl.spatial(
    neighbscore_copy,
    img_key="hires",
    color=["leiden"],
    size=1.4,
    alpha_img=0,
)

/tmp/ipykernel_2546534/4146532080.py:1: FutureWarning: Use `squidpy.pl.spatial_scatter` instead.
  sc.pl.spatial(

6. Differential expression between domains

Now that every spot carries a domain label, we can ask: which ligand–target pairs are most characteristic of each domain? This is a one-vs-rest Wilcoxon test on the score matrix.

Step 1 — carry the labels back to the original score AnnData

The Leiden labels live on neighbscore_copy (the PC-space AnnData). For DE we want the original score values in neighborhood_scores.X, so copy the labels and clustering metadata across.

neighborhood_scores.obs['leiden'] = neighbscore_copy.obs['leiden']
neighborhood_scores.uns = neighbscore_copy.uns

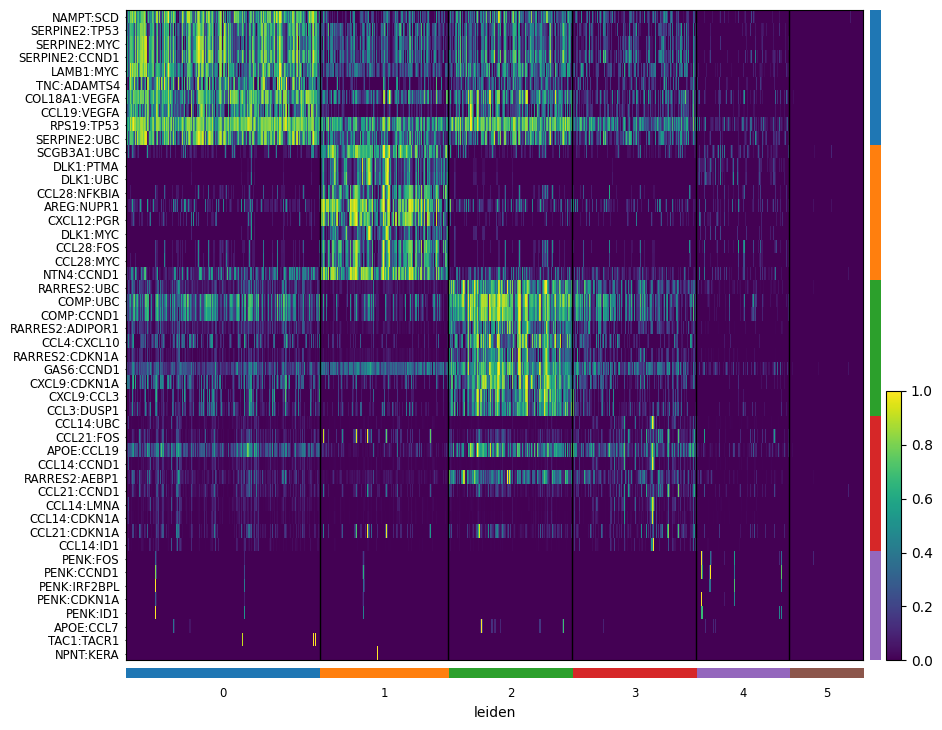

Step 2 — rank pairs and plot the heatmap

Reading the heatmap:

• Rows = ligand–target pairs (groups of 10 per domain).

• Columns = domains.

• Block-diagonal structure (bright on the diagonal, dim off it) tells you each domain has its own signaling signature.

A WARNING: No genes found for group ... just means one cluster didn’t have pairs that passed min_logfoldchange. It’s not a failure — usually a small/noisy domain.

sc.tl.rank_genes_groups(neighborhood_scores, "leiden", method="wilcoxon")

sc.pl.rank_genes_groups_heatmap(
    neighborhood_scores,
    n_genes=10,
    groupby="leiden",
    show_gene_labels=True,
    min_logfoldchange=0.5,
    dendrogram=False,
    swap_axes=True,
    standard_scale='var',
    cmap='viridis',
)

WARNING: No genes found for group 5

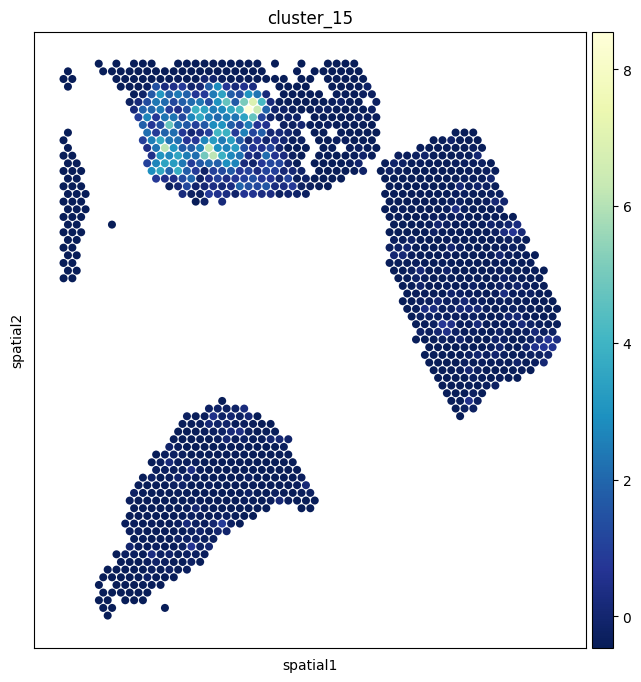

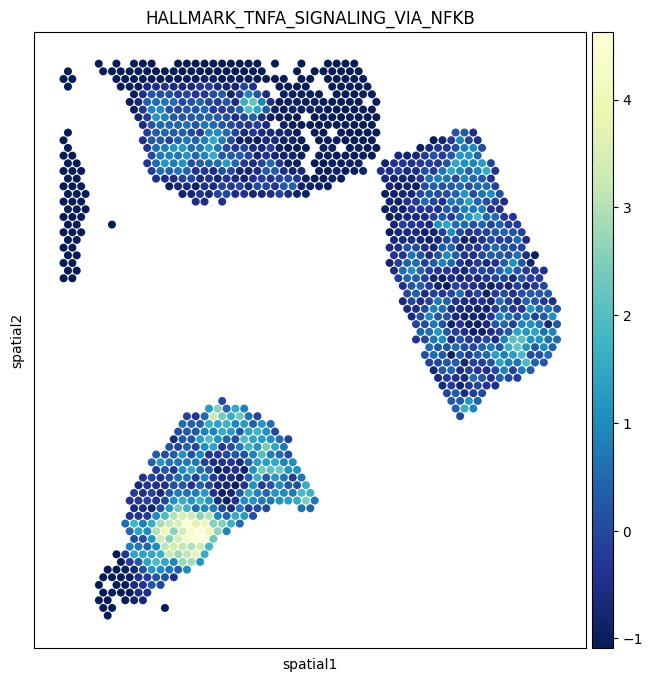

7. Pathway activity in space

The pcs AnnData from section 4 holds a per-spot activity score for every pathway cluster. Painting one of these onto the tissue is often more interpretable than a single L–T pair, because it summarizes a whole biological program.

We’ll visualize ``HALLMARK_TNFA_SIGNALING_VIA_NFKB`` and ``De novo cluster 15``.

sc.pl.spatial(
    pcs,
    img_key="hires",
    color=['HALLMARK_TNFA_SIGNALING_VIA_NFKB'],
    size=1.4,
    alpha_img=0,
    cmap='YlGnBu_r',
)

sc.pl.spatial(
    pcs,
    img_key="hires",
    color=['cluster_15'],
    size=1.4,
    alpha_img=0,
    cmap='YlGnBu_r',
)

/tmp/ipykernel_2546534/2202922046.py:1: FutureWarning: Use `squidpy.pl.spatial_scatter` instead.
  sc.pl.spatial(

/tmp/ipykernel_2546534/2202922046.py:10: FutureWarning: Use `squidpy.pl.spatial_scatter` instead.
  sc.pl.spatial(

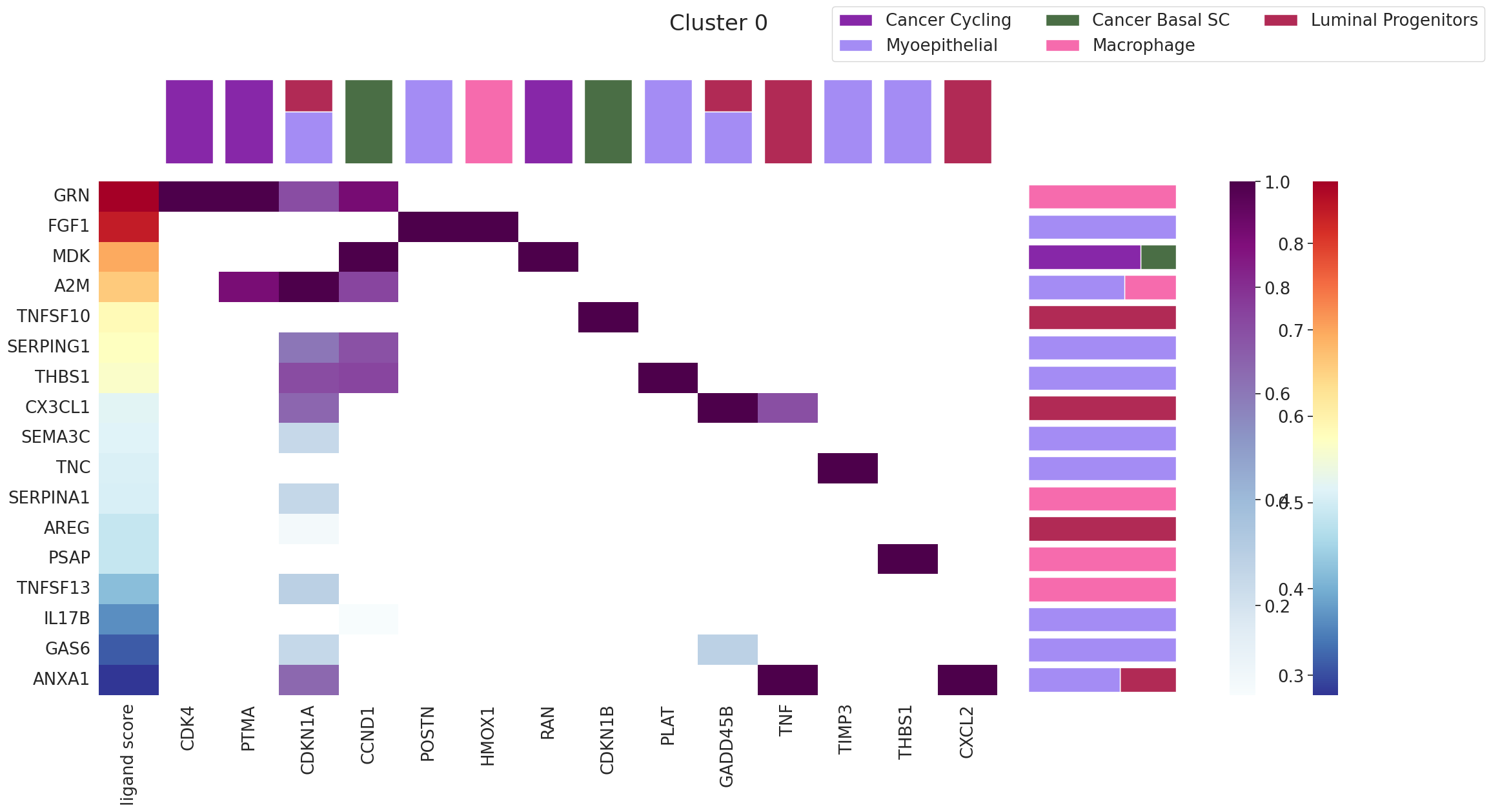

8. Renoir.pcs_v_neighbscore — Pathway vs. pair contribution

For each pathway cluster, it generates:

1. A clustermap showing how individual ligand–target pairs in that pathway contribute to the overall pathway activity across spots — i.e., which pairs are doing the work.

2. A spatial feature plot of the pathway score for context.

This is invaluable when a pathway looks active in a region: you can immediately see which specific signaling axes are responsible, rather than just knowing “IL6/JAK/STAT3 is up here.”

Key arguments

Argument	Meaning
neighbscore	The neighborhood-scores AnnData.
ltpair_clusters	The dict of pathway/de novo clusters from create_cluster.
pdf_path=None	Path to save all plots as a multi-page PDF. Highly recommended — there’s one figure per pathway, so this dumps a lot of plots.
spatialfeatureplot=True	Include the spatial map alongside each clustermap.
clustermap=True	Generate the per-pathway clustermap.
size=1.4	Spot size for the spatial plots.
colormap	Colormap for both heatmap and spatial plots (default: Spectral).

# Save all figures to a PDF — one page per pathway
rd.pcs_v_neighbscore(
    neighborhood_scores,
    ltpair_clusters={k:pathways[k] for k in list(pathways.keys())[0:2]},
    pdf_path='/shared/nr57/Renoir_data/pcs_vs_nbscore_demo.pdf',
    spatialfeatureplot=True,
    clustermap=True,
    size=1.4,
)

HALLMARK_ALLOGRAFT_REJECTION

/home/nr57/.conda/envs/genomics/lib/python3.11/site-packages/Renoir/downstream.py:675: FutureWarning: Use `squidpy.pl.spatial_scatter` instead.
  sc.pl.spatial(pc_v_neighb, color = cluster, show = False, size=size, alpha_img=0)

HALLMARK_EPITHELIAL_MESENCHYMAL_TRANSITION

/home/nr57/.conda/envs/genomics/lib/python3.11/site-packages/Renoir/downstream.py:675: FutureWarning: Use `squidpy.pl.spatial_scatter` instead.
  sc.pl.spatial(pc_v_neighb, color = cluster, show = False, size=size, alpha_img=0)

9. Renoir.ligand_ranking — Which ligands drive a domain?

The previous tools tell you what is happening in each domain. ligand_ranking answers why: which ligands are most likely driving the signature of a chosen domain?

It works by ranking ligands by how well their predicted target activity explains the marker pairs of the domain, while requiring the receptor is actually expressed in that domain’s spots.

Key arguments

Argument	Meaning
neighbscore	The score AnnData with Leiden labels.
celltype	AnnData of per-spot cell-type proportions.
scrna	Matched scRNA-seq reference (used for receptor expression).
ligand_receptor_pairs	NATMI / OmniPath L–R table.
ligand_target_regulatory_potential	NicheNet-style ligand → target regulatory scores.
domain	The domain ID to interrogate (string, e.g. '0').
receptor_exp=0.05	Minimum receptor-expressing spot fraction. Filters out ligands the domain literally can’t sense.
markers={'top': 100}	Use the top-100 marker pairs of the domain as the ranking signal.
domain_celltypes=['top', 5]	Restrict to the top-5 cell types by abundance in the domain.
celltype_colors	The palette dict — pass {'auto': True} for default colors.

The output is a multi-panel matplotlib.Figure: ligand ranking bars, expressing cell types, and the spatial location of the domain.

fig = Renoir.ligand_ranking(
    neighborhood_scores,
    celltype,
    SC,
    ligand_receptor_pairs,
    ligand_target_regulatory_potential,
    '0',                          # domain ID — repeat for '1', '2', ... to characterize the whole tissue
    receptor_exp=0.05,
    markers={'top': 100},
    domain_celltypes=['top', 5],
    celltype_colors=celltype_colors,
)
fig.set_size_inches(24, 12)
fig

WARNING: It seems you use rank_genes_groups on the raw count data. Please logarithmize your data before calling rank_genes_groups.

10. Renoir.downstream.sankeyPlot — Ligand → target → cell type → domain

The Sankey plot is the integrative summary view of Renoir’s outputs. It shows the flow:

ligand → target → cell type → domain

…for a chosen set of L–T pairs, weighted by their activity. Bands’ widths are proportional to the activity flowing along each path. This is the figure to put in a paper when you want to convey “here’s which ligands act on which targets in which cell types in which niches” all in one image.

Key arguments

Argument	Meaning
neighbscore	Score AnnData with obs['leiden'] populated.
celltype	AnnData of per-spot cell-type distributions.
ltpairs	List of ligand–target pair names to include. Pick a focused subset — the plot becomes unreadable with too many pairs.
n_celltype=5	Top-N cell types to consider per domain.
clusters='All'	List of domain IDs to include, or 'All'.
title=None	Optional plot title.
labelsize=2	Label size — bump up to 8–12 for legibility.
labelcolor='#000000'	Text color for labels.

Building the L–T pair list

A common pattern: take the top marker pairs from one or two domains of interest and pass those.

# Pull the top 5 marker pairs from each domain to pass into the Sankey
de_results = neighborhood_scores.uns['rank_genes_groups']
top_per_domain = {
    group: list(de_results['names'][group][:5])
    for group in de_results['names'].dtype.names
}

# Flatten and de-duplicate
ltpairs_for_sankey = sorted({pair for pairs in top_per_domain.values() for pair in pairs})
print(f'Sankey will visualize {len(ltpairs_for_sankey)} ligand-target pairs')
ltpairs_for_sankey[:10]

Sankey will visualize 27 ligand-target pairs

['APOE:CCL19',
 'AREG:NUPR1',
 'CCL14:CCND1',
 'CCL14:UBC',
 'CCL21:FOS',
 'CCL28:NFKBIA',
 'CCL4:CXCL10',
 'COMP:CCND1',
 'COMP:UBC',
 'CXCL8:CYP1A1']

rd.sankeyPlot(
    neighborhood_scores,
    celltype,
    ltpairs_for_sankey,
    n_celltype=5,
    clusters=['0' ,'1', '2'],          # or e.g. ['0', '1', '2'] to focus on specific domains
    title='Top marker ligand-target activity across domains',
    labelsize=10,
    labelcolor='#000000',
)

---

Wrap-up: the full downstream toolkit at a glance

Tool	Use it when…
sc.pl.spatial(neighborhood_scores, color=...)	You want to inspect a specific L–T pair in space.
Renoir.create_cluster(... method=None)	You want to use curated pathways from MSigDB.
Renoir.create_cluster(... method='dhc')	You want de novo, data-driven L–T groups.
Renoir.downstream_analysis	You want communication domains (Leiden) + per-pathway scores in one shot.
sc.tl.rank_genes_groups	You want DE pairs per domain with full scanpy flexibility.
Renoir.pcs_v_neighbscore	You want to know which pairs drive each pathway — the pair-level breakdown of pathway activity.
Renoir.ligand_ranking	You want to know which ligands drive a specific domain.
Renoir.downstream.sankeyPlot	You want a single integrative figure of ligand → target → cell type → domain flow.

Suggested workflow for a real analysis

1. Quick look: sc.pl.spatial on a few candidate pairs you already have a hypothesis about.

2. Group: create_cluster to build pathway and (optionally) de novo clusters.

3. Cluster spots: downstream_analysis to get domains and per-pathway PCs.

4. Verify domains: spatial map of leiden; tweak resolution until the domains make biological sense.

5. Characterize each domain: rank_genes_groups heatmap, then pcs_v_neighbscore for pathway-level detail.

6. Find drivers: ligand_ranking for each domain.

7. Summarize: one or two sankeyPlots for the paper.

Where to go from here

• Compare resolutions: sweep resolution in downstream_analysis — coarser/finer domains often surface different biology.

• Bring in de novo clusters: rerun the whole pipeline with all_clusters (pathway + de novo) to see if data-driven groups expose programs MSigDB misses.

• Cross-resolution comparison: if you have a single-cell platform like CosMx for the same tissue, run that tutorial and check which signaling axes survive at higher resolution.
